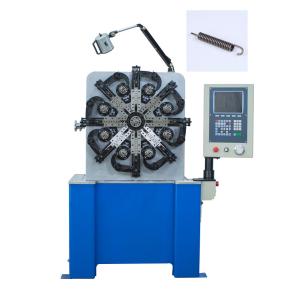

3-4 axis CNC20 extension spring machine with production rate 100pcs/min
XD-CNC20 universal spring forming machine
Details:
1. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding
wheels constitutes of one group, totally two groups.
2. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards
and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also
can control direction action or designated moves back and forth.
3. Optional accessories: Cutting tools, rolling axis, safety door.
Technical Parameter:
| Model: | XD-CNC20 |
| Wire diameter: | φ0.3～2.3 mm |
| Axes: | 3 axes |
| Maximum Outside Diameter: | 40mm |
| Maximum Feeding Length: | unlimited |
| Maximum Manufacture Speed: | 100pcs/min |
| Feed Speed | 200m/min |
| Memory Number: | 1000PCS |
| Wire Feed Servo Motor: | 2.7 KW |
| Cam Servo Motor: | 2.7 KW |
| Quin Servo Motor | 0.75 KW |
| Power AC: | 220V 3P 50/60Hz |
| Dimensions (L*D*H): | 1400X550X1600MM |
| Wooden Case Dimensions | 1600x600x1700mm |
| Machine Weight: | 900Kg |
| Gross Weights | 950Kg |
Applicated products:
